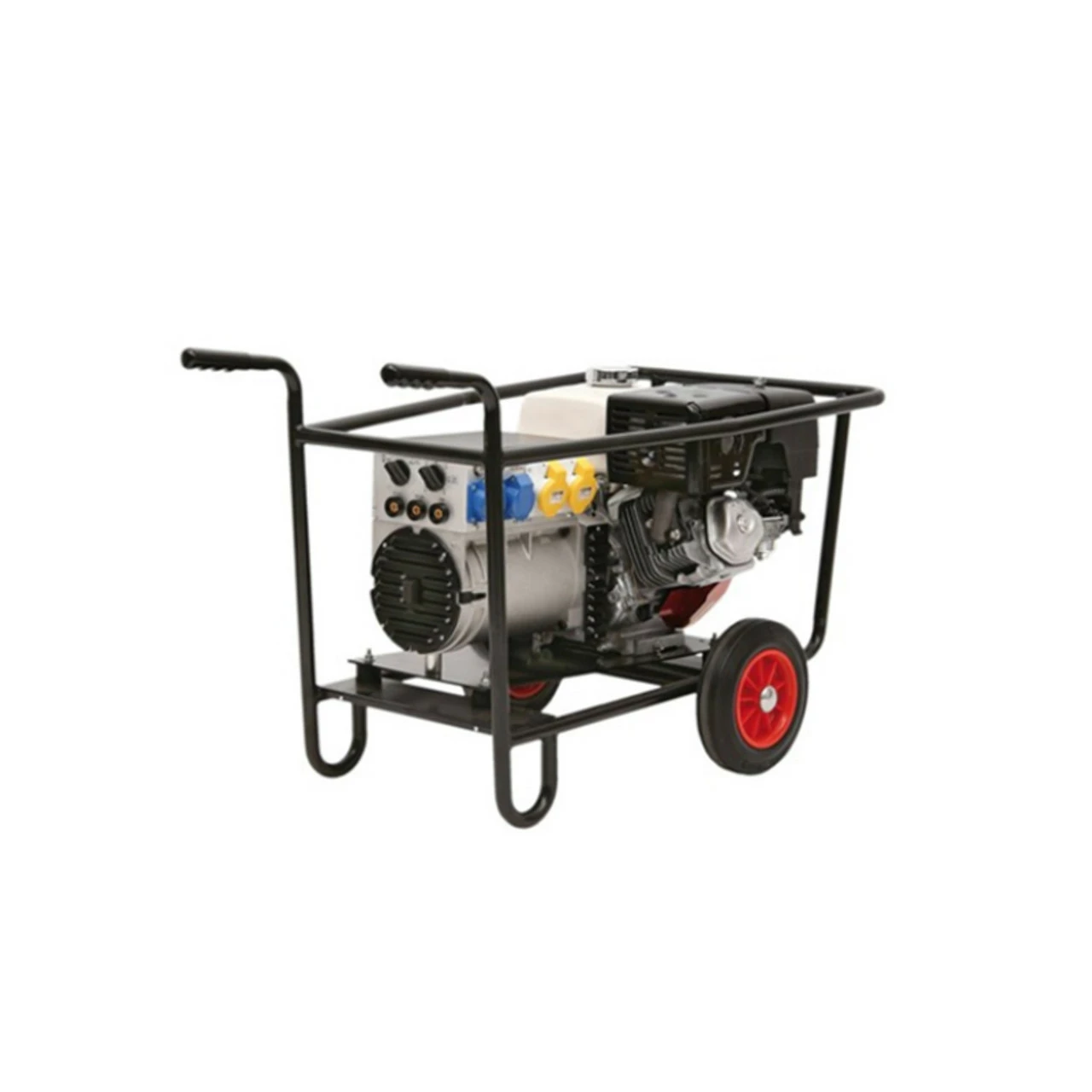

SIP 25169 HP200W-AC ES Honda Welder Generator

The SIP HP200W-AC ES is a powerful petrol welder generator designed to provide mobile welding solutions for various tasks, as well as offer auxiliary outputs for use as a standalone generator.

Features

• Electric-starting model
• 230v / 115v input supply
• Honda GX390 petrol engine
• 7KVA max. rated generator output
• 60A – 200A ARC (AC) output current
• High 180A @ 60% generator duty cycle
• 7.3litres (2.45hours) fuel tank and runtime
• 1.5mm – 8mm approx. weld thickness range
• 1.6mm – 5mm maximum electrode diameter
• Inclined cylinder and counterbalance shaft
• Low oil shutdown helps prevent damage
• Hot spark ignition, splash-fed lubrication
• Excellent and efficient fuel consumption
• Reduced oil consumption for longer life
• Assembled and tested by SIP in UK
• 3 year Honda engine warranty

25169 Specification

• ITEM NO. 25169
• Electric Start: Yes
• Engine Type: Honda GX390
• Output Current: 60A – 200A (AC)
• Open Circuit Voltage: 45v – LO / 60v – HI
• Generator Duty Cycle: 180A @ 60%
• Electrode Diameter: ? 1.6mm – 5mm
• Welding Thickness: 1.5mm – 8mm
• Generator Supply: 230v / 115v
• Generator Output: 7KVA
• Fuel Tank Capacity: 7.3litres
• Full Load Run Time: 2.45hours
• Insulation: Class H
• Protection: IP21

What is included:

• 1 x SIP 25169 HP200W-AC ES Honda Welder Generator
